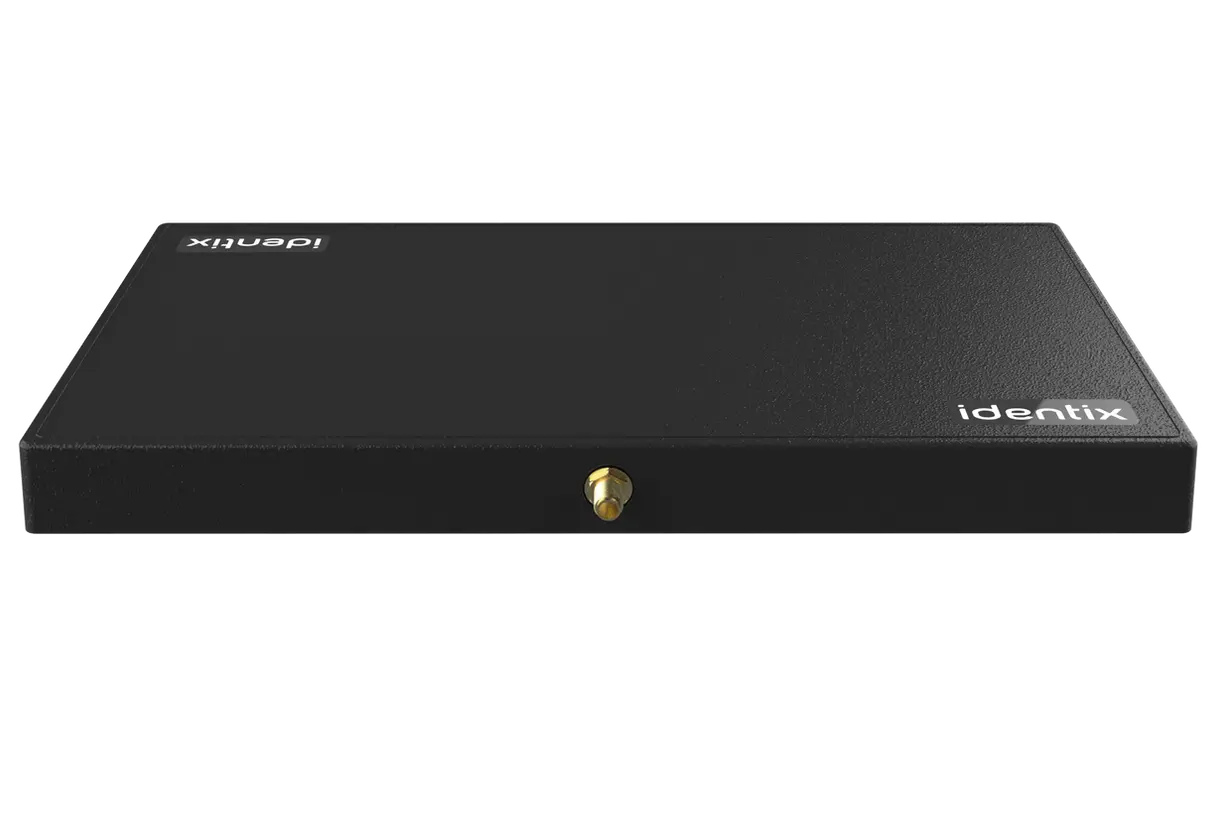

Antenna 65C6095
UHF RFID antenna array with circular polarization
Identix 65C6095 is a static antenna array specifically designed for applications in passageways and portals, where ensuring reliable reading of RFID tags at varying distances and orientations is critical.
Featuring circular polarization and a curtain-shaped beam, the Identix 65C6095 delivers high reading efficiency and extensive coverage, making it the optimal choice for RFID control portals, loss prevention systems, and other transition monitoring applications where precise RF signal control and containment are essential.
Its compact, modern, and lightweight design facilitates installation across diverse environments, offering versatility without compromising performance.
SPECIFICATIONS
Static antenna array
Operating Frequency: 900–930 MHz
Polarization: right-hand circular
Far-Field Gain: 6.5 dBiC (maximum)
Beamwidth: 60° by 95°
Maximum input power: 10 W
Applications
UHF RFID portals for loss prevention
Transition and access control portals
Standard UHF RFID gateway solutions
Goods movement monitoring and control
Applications in logistics and distribution
Suitable for retail stores, warehouses, hospitals, industrial sites, libraries, schools, and similar environments
Technical Specifications
Operating Frequency: 900 MHz to 930 MHz
Input impedance: 50 Ω
Polarization: circular
Far-Field Gain: +6.5dBiC
Beamwidth: 60° by 95°
VSWR: less than 1.6:1 throughout the operating frequency range
Axial ratio: 1.5 dB at 915 MHz
Field intensity in the near field 3.8 dBA/m at 6 mm (maximum)
Maximum input power: 10 W
Connector: SMA female
Dimensions: 245 x 125 x 20 mm
Base: aluminum
Radome: ABS
Environmental protection rating: IP65
Weight: 350 g
