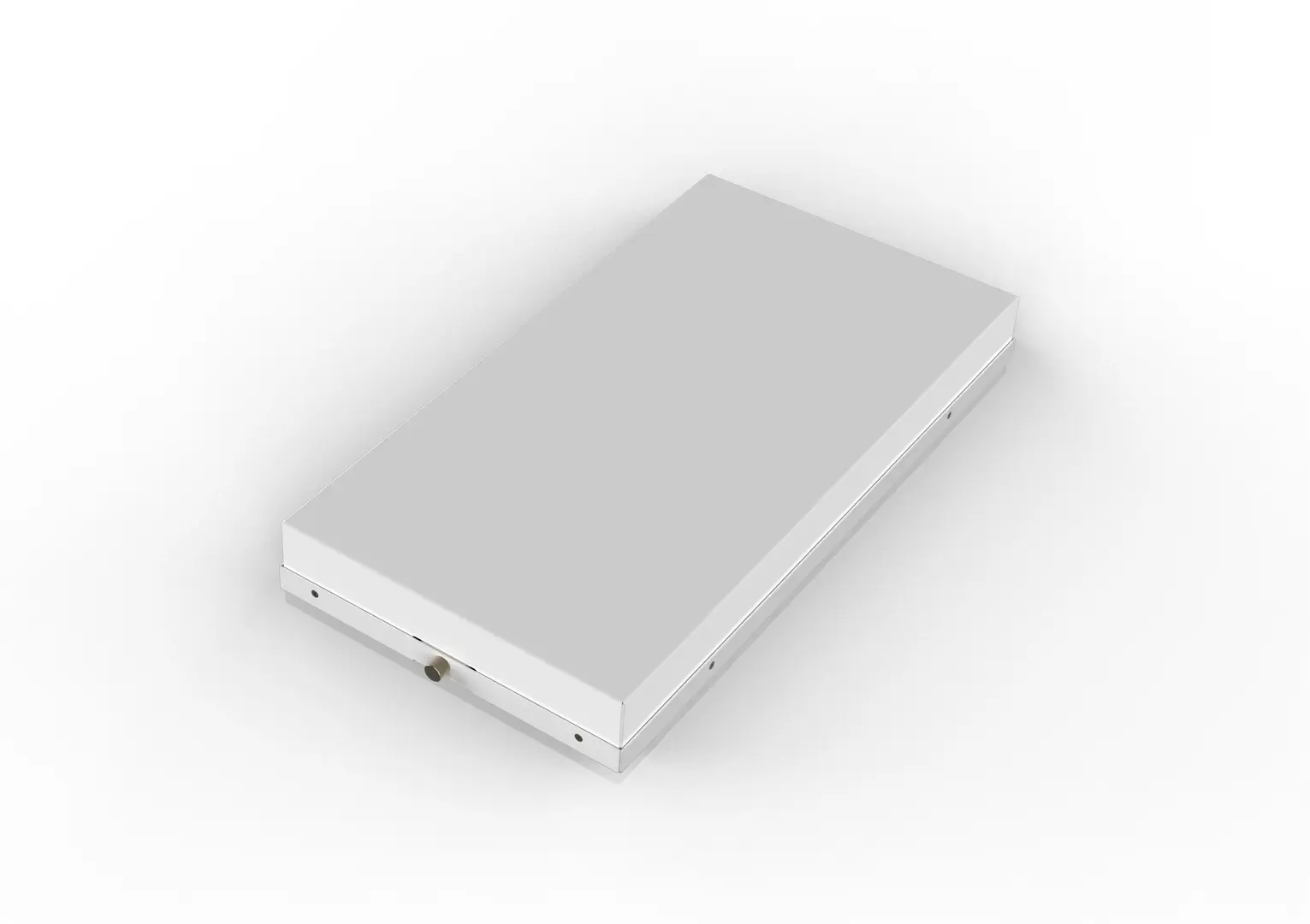

Identix GateView OTP-7070
RAIN RFID portal for transition applications
The Identix GateView OTP-7070 is a compact, high-performance RAIN RFID portal that integrates an RFID reader and antennas into a single unit, providing a comprehensive and efficient solution for demanding environments.
Designed specifically for transition zones, large-area monitoring, and challenging reading scenarios, the GateView OTP-7070 distinguishes itself through its advanced design and the use of Identix high-gain antennas with exceptional efficiency, ensuring superior tag identification performance even under the most critical conditions.
When used with tags equipped with the Impinj M800 chip, the GateView OTP-7070 supports the GEN2X protocol, enabling a substantial increase in reading speed and up to a 90% reduction in inventory time for Tags of Interest (TOI).
Featuring a discreet finish, compact dimensions, and versatile installation options — including ceilings, walls, or custom structures — the GateView OTP is ideal for a broad range of applications across retail, logistics, industrial sectors, and more.
High-Performance Integrated RFID Portal
General Features
Specifically Designed for Transition Zone Monitoring and Passageways: Docks, Boarding Areas, Receiving Zones, etc.
Ceiling or Wall Mount Installation
Compact and Easy to Install
Aluminum Metal Enclosure with Electrostatic Coating
Compatible Readers
Identix EZ-Series – EZ700 / EZ500
Impinj R700 / R720
Integrated Antenna Array
Two Reading Zones with a Total Effective Opening of 90° x 70° Relative to the Portal Center (Vertical)
Each beam consists of a high-gain radiating element (8.5 dBiC) with circular polarization.
Technical Specifications
RAIN RFID portal integrated with l antennas and reader (provided separately)
Compatible with RFID readers
Identix EZ-series
Impinj R700 series
Operating frequency: 902 MHz to 928 MHz
Full reading zone aperture of 90° x 70° (A+B=90°)
Wall or ceiling mounting
Ceiling mounting bracket included
Supports installation of up to two additional antennas
Environmental protection rating: IP54
Operating Temperature: -20°C to +50°C with humidity ranging from 5% to 95%
Dimensions: 490 x 260 x 50 mm
Approximate Weight: 4 kg
