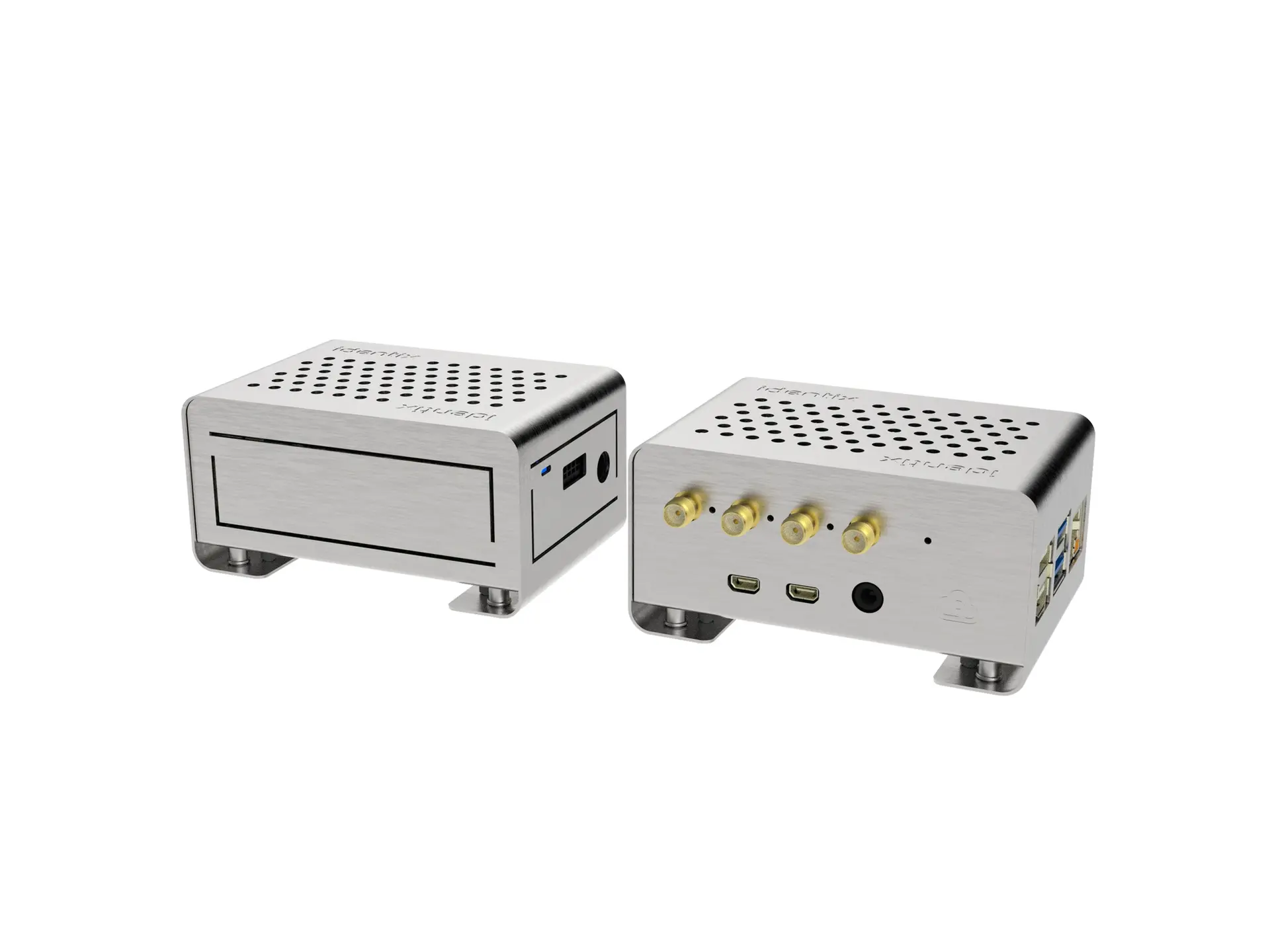

SAMDK series
Embedded RAIN RFID reader solution for Raspberry Pi
With full flexibility in mind, Identix developed SAMDK which is complete RAIN RFID solution based on Raspberry Pi.
SAMDK can be used in a variety of forms:
1. as a development kit "carrier board" for the SAM line of RFID modules
2. as a full-featured reader along with RPi as the main host or
3. as a standalone reader PCB for embedded applications
SAMDK implements a dedicated power supply which feeds simultaneously the RFID module and the RPi host. It also integrates a buzzer, an RGB LED, one high-power GPO and one GPI. The communication between SAM module and RPi host can be done via I2C, UART or high-speed SPI interfaces.
When using SAMDK (along with RPi) as a standalone reader solution, the ESP-32-S3 MCU present in the SAM module can be disabled or used as an additional co-processor for specific functions. In this scenario the Impinj RFID reader IC is fully controlled by the RPi host via high-speed SPI interface.
Additionally, sophisticated embedded "in-reader" applications can be easily developed to run on the RPi computer using numerous development and integration tools available in the market.
SAMDK A T A GLANCE
SAMDK is available in three different versions, depending on your needs:
SAMDK-700 +1100 tags/s with -89dBm (max) sensitivity
SAMDK-500 +700 tags/s with -81dBm (max) sensitivity
SAMDK-300 +300 tags/s with -73dBm (max) sensitivity
Except for the RFID reading performance and reading sensitivity, all remaining features and resources are equal among all models.
Gen2V2 RAIN RFID reader
Four RF RFID antenna ports
Integrated power supply which allows simultaneous feeding of SAM RFID module and the RPi host
One high luminosity RGB LED and internal buzzer for signaling
One high-power GPIO (+12VDC)
One opto-isolated GPI
Internal RTC with supercap for data/time retention on RPi
Wi-Fi and BLE connectivity via ESP-32-S3 embedded MCU in SAM module
Embedded ESP-32-S3 MCU inside SAM module can be disabled by software
Allow direct access to Impinj reader IC via high-speed SPI interface
Technical Specifications
RAIN RFID reader board with four RF antenna ports (TNC female RP)
Worldwide RAIN RFID regulatory domain support including USA (FCC) and Europe (ETSI)
Impinj Gen2V2 chipset (E710, E510 or E710) with DRM (Dense Reader Mode) and Carrier Cancellation
Reading performance (FCC) and RX sensitivity
SAMDK-700 +1100 tags/s -89dBm
SAMDK-500 +700 tags/s -81dBm
SAMDK-300 +300 tags/s -73dBm
Transmit power: from +0dBm to +30dBm, configurable in increments of 0.5dBm. OBS: maximum power is limited on SAMDK due to heat dissipation
Two high luminance programmable RGB LEDs for signaling
Integrated 110dB buzzer
One opto-isolated GPI(s)
One high power GPO(s) with output voltage configurable via software
Integrated 110dB programmable buzzer for signaling
Operating temperature: -20 to +50°C. 5% to 95% non-condensing humidity
Weight: 180g (SAMDK PCB and case)
Certifications: FCC, CE, Anatel
